Microsoft MapPoint Interface

What is Microsoft MapPoint?

MapPoint is a mapping software that takes one or several addresses and plots them on a map and provides directions to each address (similar to other mapping software). It can also do a very basic optimization based on the addresses plotted on the map. In i-Pak, there are several areas and screens in the system where MapPoint can be utilized. In addition, since i-Pak interfaces with MapPoint, the addresses are automatically sent to MapPoint from i-Pak so the user does not need to 'reenter' an address.



Where can I use the Interface?

Once the interface is activated (see below), the MapPoint icon will be displayed on various screens in i-Pak. These include:

Customer Profile - to find a specific customer's service address on a Map.

On Line Dispatching - to plot all work orders on the screen to a Map.

View Route lists - to plot an entire route list on a Map.

There are detailed instructions in each applicable section on how to use the MapPoint Interface.



What you need

Microsoft MapPoint - this is a Microsoft product and can be purchased at retail stores such as CompUSA, Staples, Office Max, Office Depot, etc. You can also purchase it through Soft-Pak, please call our Sales Department at 619-283-2338 for details.

Microsoft MapPoint is very similar to Microsoft Streets & Trips; however, MapPoint has additional programs 'behind the scenes' that are necessary to interface with i-Pak. Therefore, you must have Microsoft MapPoint for this interface.

To activate the Interface

From any i-Pak screen, place your cursor anywhere on the i-Pak by Soft-Pak field:

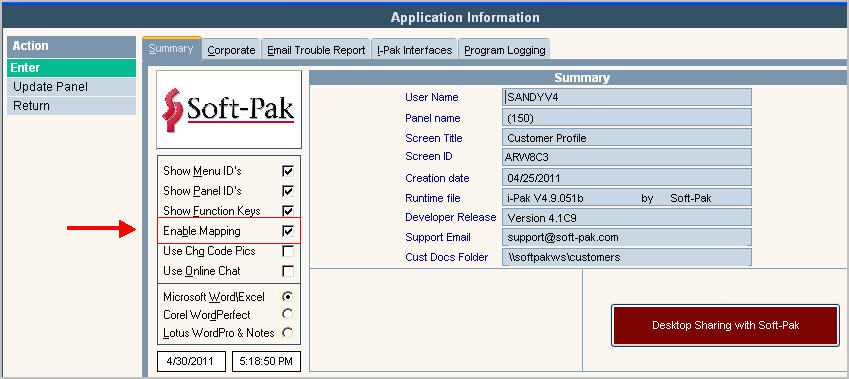

and click your mouse button once ('single click').The i-Pak Application Information screen will be displayed. On the line titled 'Enable Mapping', single click in the box to the right . This will put a check mark in the box and 'turn on' the MapPoint interface.
